L3-1700 Electric Laminating machine
L3-1700 Electric Laminating machine
L3-1700 Electric Laminating machine

UV DTF printer:
L3-1700 Electric Laminating machine

Get Quote Now
UV DTF printer: L3-1700 Electric Laminating machine
Product Description

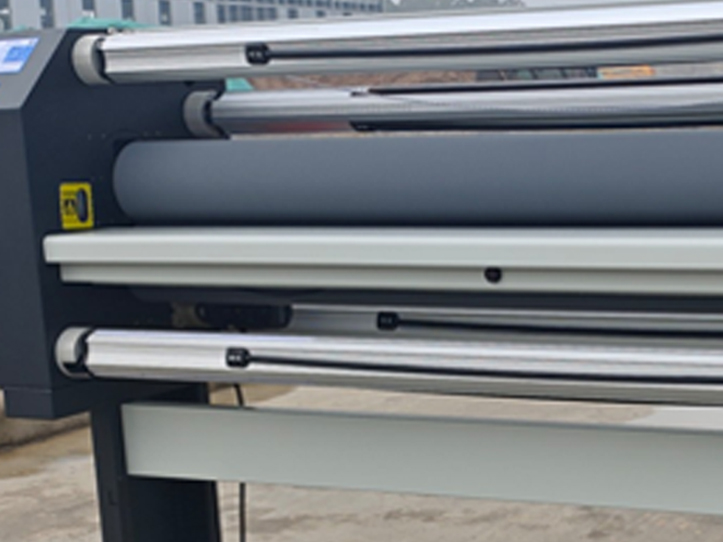

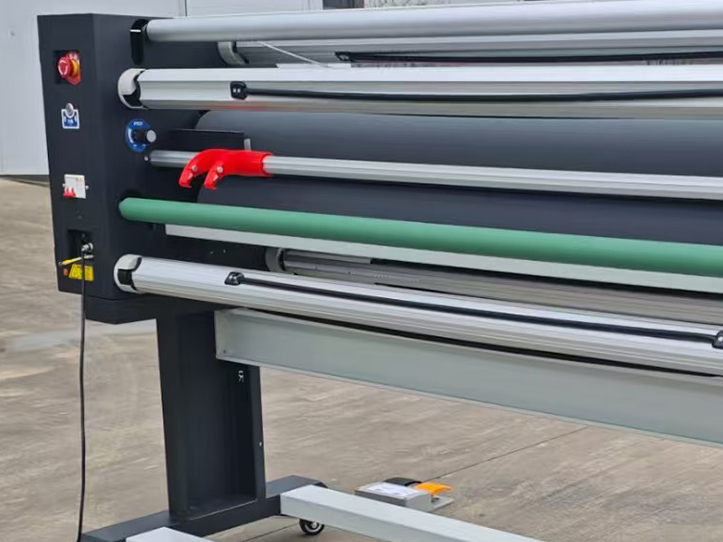

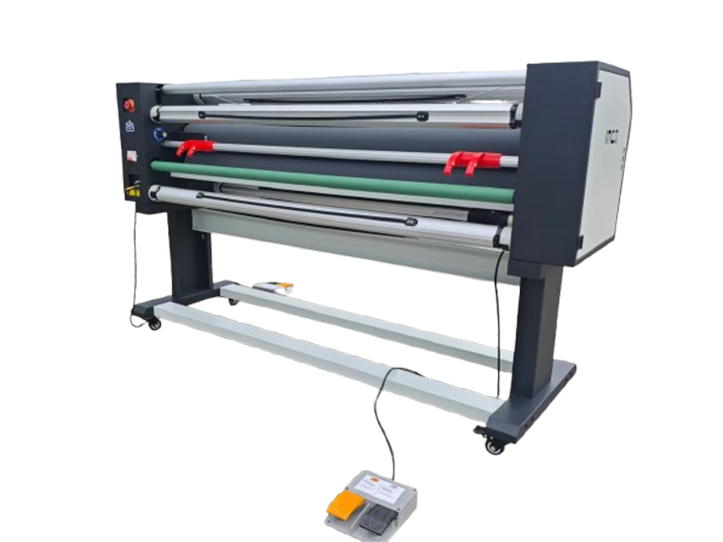

The L3-1700 is a 64-inch industrial-grade electric laminating machine designed for wide format applications. Powered by a 400W industrial servo motor and featuring intelligent suction platform, patented control system, and dual foot pedal operation, it supports hot and cold lamination at speeds up to 37m/min. With 80°C max temperature, 200mm film diameter, and 130mm silicone rollers, this laminator delivers precise, high-speed performance for signage, graphics, and printing professionals.
Printing steps

Step 1: Print on the film

Step 2: Lamination

Step 3: Peel off the basement membrane and paste the surface you want

Application: Leather,Metal,Plastic,Paper,Wood,Glass,Ceramic,
Intelligent suction platform.
Intelligent suction platform.

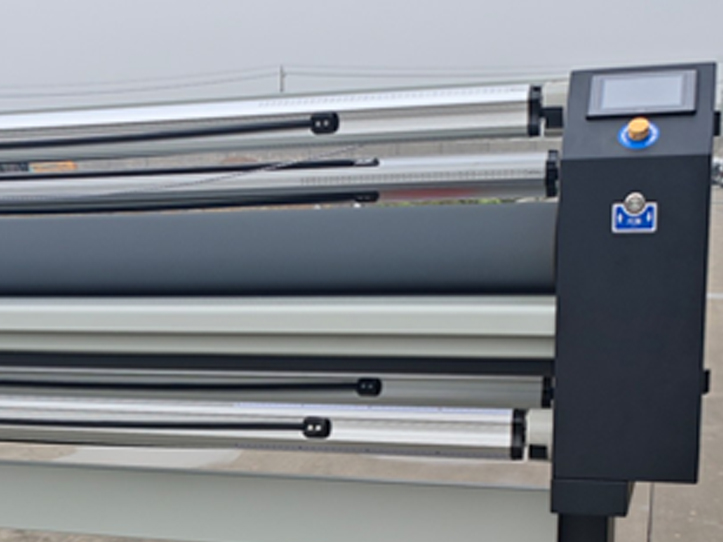

Patented control system. Remotely up gradable
Patented control system. Remotely up gradable
Security system prevent trapped fingers
Security system prevent trapped fingers
Accurate meterage.
Accurate meterage.

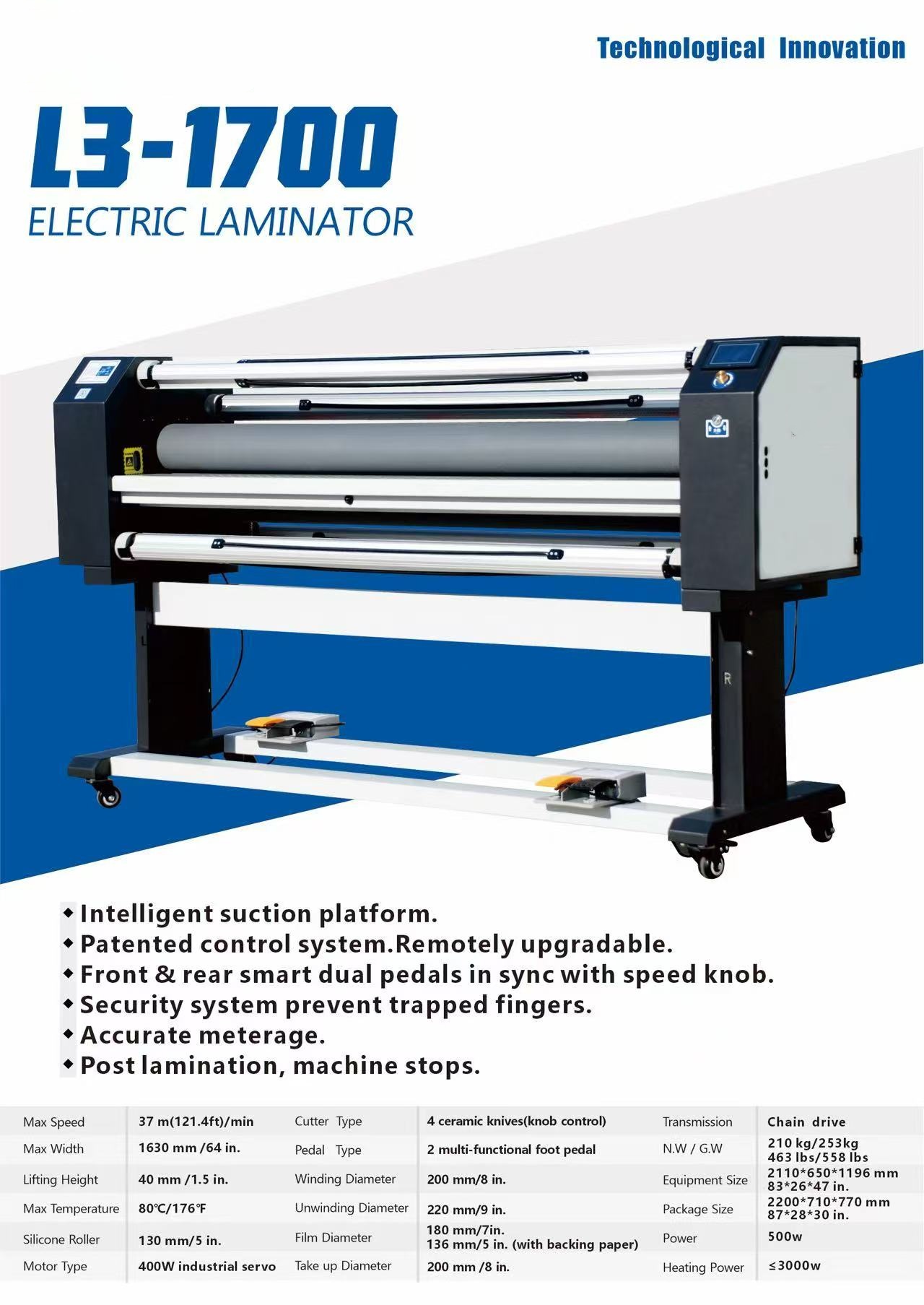

Specification
Model Number L3-1700 electric  Laminating machine
Nominal Voltage 110/220v
Power 500w
Max Speed 37 m(121.4ft)/min
Lifting Height 40 mm /1.5 in.
Max Temperature 80℃℃/176℉
Cutter Type 4 ceramic knives(knob control)
Pedal Type 2 multi-functional foot pedal
Winding Diameter 200 mm/8 in.
Unwinding Diameter 220 mm/9 in.
Film Diameter 180 mm/7in.
Take up Diameter 200 mm /8 in.
Transmission Chain drive
N.W / G.W 210 kg/253kg
Product Size 2110*650*1196 mm
Packing Size 2200*710*770 mm
Multiple Applications of UV Printer
Customize anything! More than Just T-Shirts, Jeans, sweatshirts, koozies, Hats, golf towels, socks, masks, canvas shoes, jackets, sleeves, children’s clothes, canvas, cushion covers, Hoodies, backpacks, and Sweaters. Without limits.
Suitable for almost all types of fabrics. It works on both white and dark textiles. No pre-treatment is required.
Want to know more about the Printers?
Fill out the form or chat below or call +86 15838124632
